[ MICROFIBERSCOPES RANGE
]
In spite of the very small diameter (0,5
- 2,5 mm) FiberOptic Micro Fiberscopes offer high quality with high
resolution (up to 30 000 pixels) and will help to solve many inspection
problems within the ranges of micro components, micro channels etc.
▶ TECHNICAL DATAS
| Type
MTFS... |
050 |
075 |
100 |
150 |
200 |
250 |
| Working-Φ(mm)(지름) |
0,5 |
0,75 |
1,0 |
1,5 |
2,0 |
2,5 |
Working
length (m)
(유효길이) |
0,5/1,0/1,5/2,0 |
2/3/4/5 |
2/5/10/15 |
| Resolution(Pixels) |
4000 |
6000 |
10
000 |
30
000 |
30
000 |
30
000 |
| Direction
of view |
0˚direct |
| Field
of view approx. |
70˚ |
70˚ |
70˚ |
60˚ |
70˚ |
70˚ |
| Focal
range |
3-50
mm |
10
mm - infinity |
| Diopter |
adjustable |
| Min.
bending radius (mm) |
10 |
15 |
30 |
50 |
60 |
80 |
| Rigid
part max. (mm) |
5 |
5 |
6 |
7 |
10 |
12 |
| IIIumination |
Integrated
fibre optic light conductor
with light guide 1500 mm lenght |
| Photographic
and TV use |
The
eyepiece design permits mounting of
corresponding adapters |
| Temperature
resistance |
up
to 60℃ |

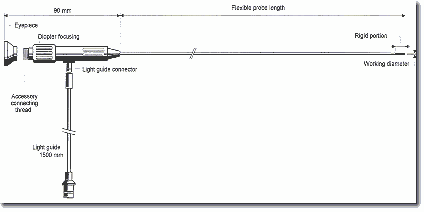

▶ DESIGN
▶ SYSTEM ACCESSORIES
.......................................................................................................................................
