[ FIBERSCOPE TFS 3.5 - 11(고급형) ]

  • 3.5Φ ~11Φ가 있으며 길이는 15METER까지 가능.
  • 보이는 방향에 따라 HEAD부분을 상하좌우로 조정할 수 있음.
  • MONITOR / VCR / COLOR VIDEO PRINER로 연결할 수 있음.
  • 방수 및 60℃까지 견딜수 있음.

Industrial fibrescopes are valuable fibre optic flexible endoscopes used as inspection tools in various areas of industry.

Fiber Optic industrial fibrescopes have gained an enviable reputation for quality based upon their high quality optical system, their rugged design and the high levels of illumination transmitted by the intergral fibre optic lighting bundles.

With their heigh flexibility, these fibrescopes will allow clear pictures of even the most remote and previously inaccessible cavities without expensive disassembly or damage to the test object.

Inspection, monitoring and early recognition of damage to turbines, examination of hollow sturctures, castings etc. are typical examples of the large range of applications with these fibrescopes.

▶ DESIGN

The most important fibrescope components are high resolution image bundle made from extremely thin glass filaments which must be arranged in the same geometrical pattern at both ends, a high quality optical system and lighting fibres which efficiently transmit an intense even light, generated by a separate light source, to the inspection area.

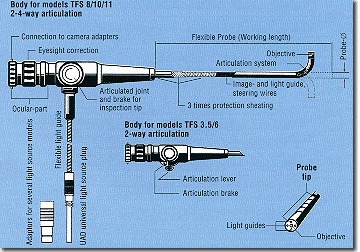

DESIGN

▶ Operating section

Comprises of the eyepiece with dioptry focusing adjustment and the various elements for distal tip articulation. Anodized aluminium housing.

▶ Sheathing

As well as their own protective sheathing the image guide, light conductors and the articulation control elements are encased in a rugged, armoured tube which is sealed in a special plastic sheath (waterproof and heatproof up to 60。 C).

▶ Probe tip

It carries the lens designed for an angle of view of approx. 70。. The tip can be articulated up to 180。 with the aid of bowden control cables.

▶ THCHNICAL DATAS

Model TFS 3.5 6 8 10/11
optic
Focal range		 5-300 mm 7-300 mm 10 mm  - ∽ 10 mm  - ∽
Field of view 70˚ 70˚ 70˚ 70˚
Eyesight magnification 25 x 20 x 12 x 12 x
Object magnification 1:1 at a working distance of approx. approx.25 mm approx.25 mm approx.25 mm approx.25 mm
Distal tip
Bending raduis		 10 mm 15 mm 20 mm 25 mm
length 30 mm 40 mm 60 mm 70 mm
IIIumination Integrated cold illuminatiion via fibre optic conductor supplied by external cold-light source
Protectives sheathing TStailnless-steel-armoured tube with additional protective tube made of special plastic
Camera and TV adapter The eyepiece design permits mounting of corresponding adapters.

▶ Basic equipment(기본장치)Basic equipment

In the basic kit, a fibrescope set comprised the fibrescope with integral flexible light guide 1500 mm long and suitable cold light source ( to be ordered separately).

The set can be configured with a number of optional accessories which are designed to simplify it's operation, extedn it's range of applications and allow documents via CCTV or phhotograpy.

All fibrescopes may be equipped on demand with a system to adapt 90。 side viewing objectives (see under accessories and price list). Special dimensions and specifications can be produced upon your request.

▶ Instrument program

Model
TFS		 Probe
Φ		 Probe
length
 Tip articulation
　 mm mm up down left right
3.5-40 3.5 400 180˚ 90˚ - -
3.5-60 3.5 600 180˚ 90˚ - -
3.5-100 3.5 1000 150˚ 90˚ - -
3.5-140 3.5 1400 120˚ 90˚ - -
6-60 6 600 180˚ 90˚ - -
6-100 6 1000 180˚ 100˚ - -
6-150 6 1470 180˚ 100˚ - -
6-200 6 2000 150˚ 90˚ - -
6-300 6 3000 150˚ 90˚ - -
8-100 8 1000 140˚ 90˚ 90˚ 90˚
8-160 8 1600 140˚ 90˚ 90˚ 90˚
8-200 8 2000 140˚ 90˚ 90˚ 90˚
8-300 8 3000 90˚ 90˚ 90˚ 90˚
8-400 8 4000 90˚ 90˚ - -
8-520 8 5200 90˚ 90˚ - -
10-100 10 1000 140˚ 140˚ 140˚ 140˚
10-160 10 1600 140˚ 140˚ 140˚ 140˚
10-200 10 2000 140˚ 140˚ 140˚ 140˚
10-300 10 3000 140˚ 140˚ 140˚ 140˚
10-400 10 4000 140˚ 140˚ 140˚ 140˚
10-520 10 5200 120˚ 120˚ 90˚ 90˚
10-600 10 6000 90˚ 90˚ - -
11-100 11 1000 120˚ 120˚ 120˚ 120˚
11-160 11 1600 120˚ 120˚ 120˚ 120˚
11-200 11 2000 120˚ 120˚ 120˚ 120˚
11-300 11 3000 120˚ 120˚ 120˚ 120˚
11-400 11 4000 120˚ 120˚ 120˚ 120˚
11-520 11 5200 120˚ 120˚ 90˚ 90˚
11-600 11 6000 120˚ 120˚ 90˚ 90˚

90。side viewing heads▶ ACCESSORIES

  • 90。side viewing heads(즉시해드)

    Mirror head SPK-3.5 for TFS 3.5
    Prism head PK-06 for TFS 6
    Prism head PK-08/10/11 for TFS 8-11

  • Cold light sources(광원장치)

    Type FOT 150 is recommended for standard applications.
    High intensity light source type XL-I, for bigger cavities or video applications.

    FOT 150 / FOT 100  XL-1

  • Light guide adapters(광원케이블)Light guide adapters

    to use TFS fibrescopes with light sources from their other manufactures (e.g.Wolf, Storz, ACMI, FORT, Olympus etc.).

  • Camera-adapter/objectives(카메라를 찍기위한 연결부)

    Universal-adapter AR-49 and TV-Objectives

    AR-49 TV-Objectives

  • TV-camera/ monitor/ video printer

    (모니터를 보면서 프린터에 의해서 사진을 촬영할 수 있습니다.)

    For documentation of inspection results.

.......................................................................................................................................
