[ Micro-endoscopes ]

(사진을 클릭하시면 확대된 사진을 볼 수 있습니다.)

SERIE METo guarantee maximum resolution FiberOptic use quartz fibers redrawn to very small diameters thus ensuring the maximum number of up to 30 000 pixels (picture points) for a given area.

Image quality obtained with a conventional lens system. With a robust stainless steel sheath and cold fibre optic lighting the Micro-Endoscopes are designed for use in an industrial

environment - the image quality being unaffected by slight bowing along the length of the scope. The benefits in practical applications of this miniaturised visual inspection aid are truly unique.

TECHNICAL DATAS

　 Direct view versions 90˚versions
Type ME../¹/²-length 01 02 03 04
Probe-Φ(mm) ¹ 0,9 to 1,3 1,4 to 2,0 1,4 to 2,0 1,5 to 2,0
Probe length (mm) 20-180 20-450 20-450 20-450
Resolution (Pixels) 10 000 10 000 30 000 10 000
Viewing direction 0˚ 0˚ 0˚ 90˚
Viewing angle standard 0 ² ~50˚ ~70˚ ~60˚ ~70˚
Viewing angle mirror tube sp ²For use together with mirror tubes ~50˚ ~40˚ ~45˚ -
Focusing Adjustable from 1 mm to infinity
Diopter Focusing Adjustable
lllumination Integrated fiber optic cold light ring illumination system
Photographic and TV adaptors Ocular parts designed for easy connection
Probe body High-grade stainless steel
Temperature resistance up to 60℃

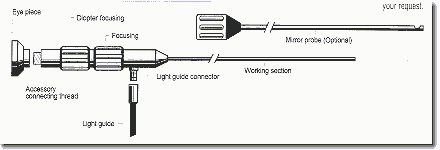

DESIGN

DESIGN

SYSTEM ACCESSORIES

SYSTEM ACCESSORIES



.......................................................................................................................................
